Description

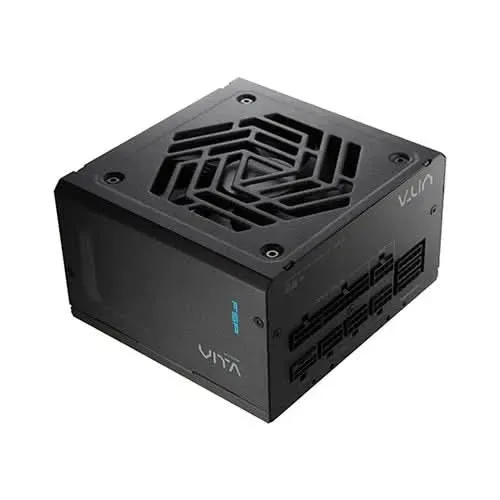

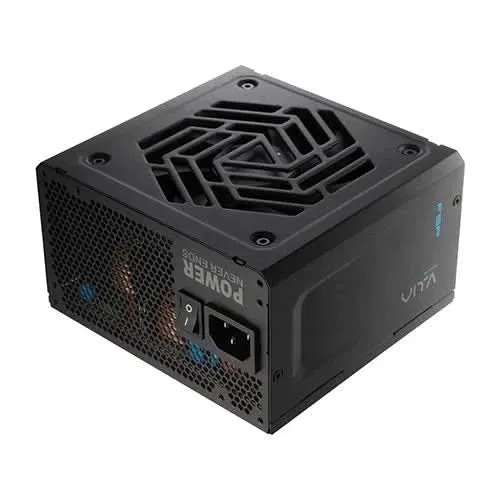

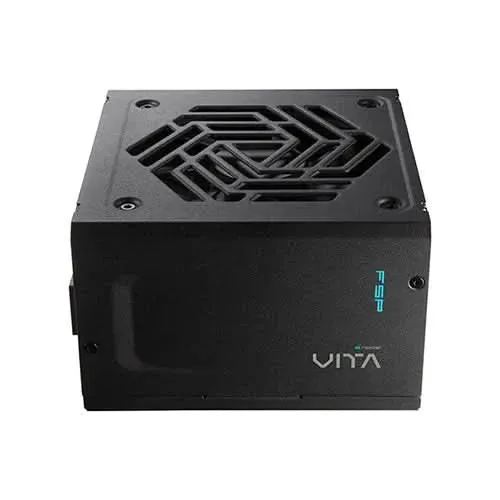

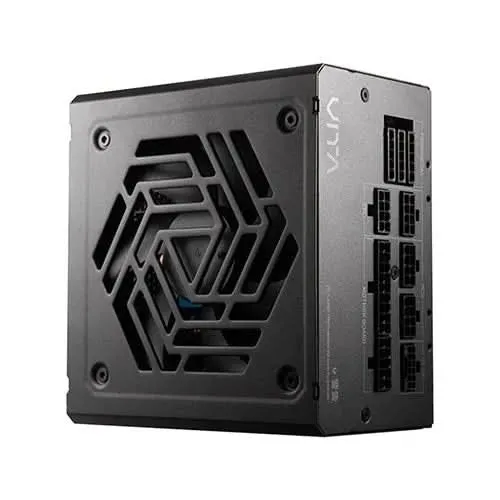

FSP VITA 1000GM 1000W 80 Plus Gold Fully Modular Power Supply ATX 3.1
- Complies with ATX 12V V3.1 & EPS 12V V2.92
- Efficiency ≧ 90% at typical load
- 80 PLUS gold certified
- 105°C Japanese bulk capacitor
- 120mm hydraulic bearing ( HYB ) fan
- Fully modular cabling design
- Complete protections: OCP, OVP, SCP, OPP, UVP, OTP, SIP, NLO
Complies with Intel Power Design Guide ATX 3.1
Built for the demanding power requirements of tomorrow, these PSUs offer maximum total power excursion support as per ATX 3.1 and PCIe Gen 5.1 specifications, ensuring peak performance with future hardware upgrades.
High Efficiency in Gold-certified
Certified by world-class organizations 80 PLUS gold certifications and reach platinum efficiency at typical load for lower power loss, less heat, and quieter operation.
LLC Resonant-converter Topology with Synchronous Rectifier
Reducing switching losses, boosting efficiency, and keeping the output voltage regulated under load conditions.
+5V & 3.3V DC to DC Circuit Design
Increase the efficiency and stabilize the output voltage to ensure system stability.
105°C Japanese Bulk Capacitor
Equip your PC with the best-in-class capacitors to offer maximize reliability, performance, and lasting power.
120 mm hydraulic bearing (HYB) fan
Quality bearing keeps fan noise to a minimum while providing maximum cooling performance.
Powerhouse Single +12V Rail
This high-amperage +12V rail delivers high load capabilities, it’s ideal for intensive workloads of high-performance CPUs and graphics cards.
The Force Comes with You
Individual CPU 4+4 pin cables provide CPU direct output power to ensure stable operation even under the most demanding workloads.
The Force Comes with You
Dual PCIe 6+2Pin cables and a versatile 12V-2×6 cable offer flexible configuration for even the most power-hungry NVIDIA or AMD graphics cards.
Fully Modular Cabling Design
To make power supply installation easy and allows users to use only the needed cables, improving airflow and reducing system clutter.
Compact PSU Size：140 x 150 x 86mm
140mm in length which is relatively shorter than industry standard, it’s ideal for compact PC or space-constraint environment without compromising on performance.
Fortress-level Protection
Our comprehensive circuit shields your valuable components from harm.
Coonector
- MB 20+4 PIN: 1
- CPU 4+4 PIN: 2
- PCIe 6+2 PIN: 4
- PCIe 12V-2×6: 1
- SATA: 4
- SATA / MOLEX: 4
Specifications
- Rated Output Power: 1000W
- Form Factor: ATX12V V3.1
- 80 PLUS Certification: Gold
- Input Voltage: 100-240V
- Input Current: 12-6A
- Input Frequency: 50-60Hz
- PFC: Active ≧ 0.9
- Efficiency: ≥90% at typical load
- Fan Type: HYB fan, 120mm
- Dimensions(L x W x H): 140×150×86 mm
- Operation Temp: 40°C
- Protection: OCP, OVP, SCP, OPP, UVP, OTP, SIP, NLO
Specifications
| Wattage | 1000 Watt |
| Series | VITA SERIES |
| Certification | 80 Plus Gold |
| Modular | FULLY MODULAR |
| PCIe Connector (6+2) | 4 |
| SATA Connector | 4 |
| Peripheral (4-Pin) | 4 |
| Warranty | 10 Years |
| Note*** |
Features, Price, Specifications are subject to change without notice. Images used for representation purpose only |
