Description

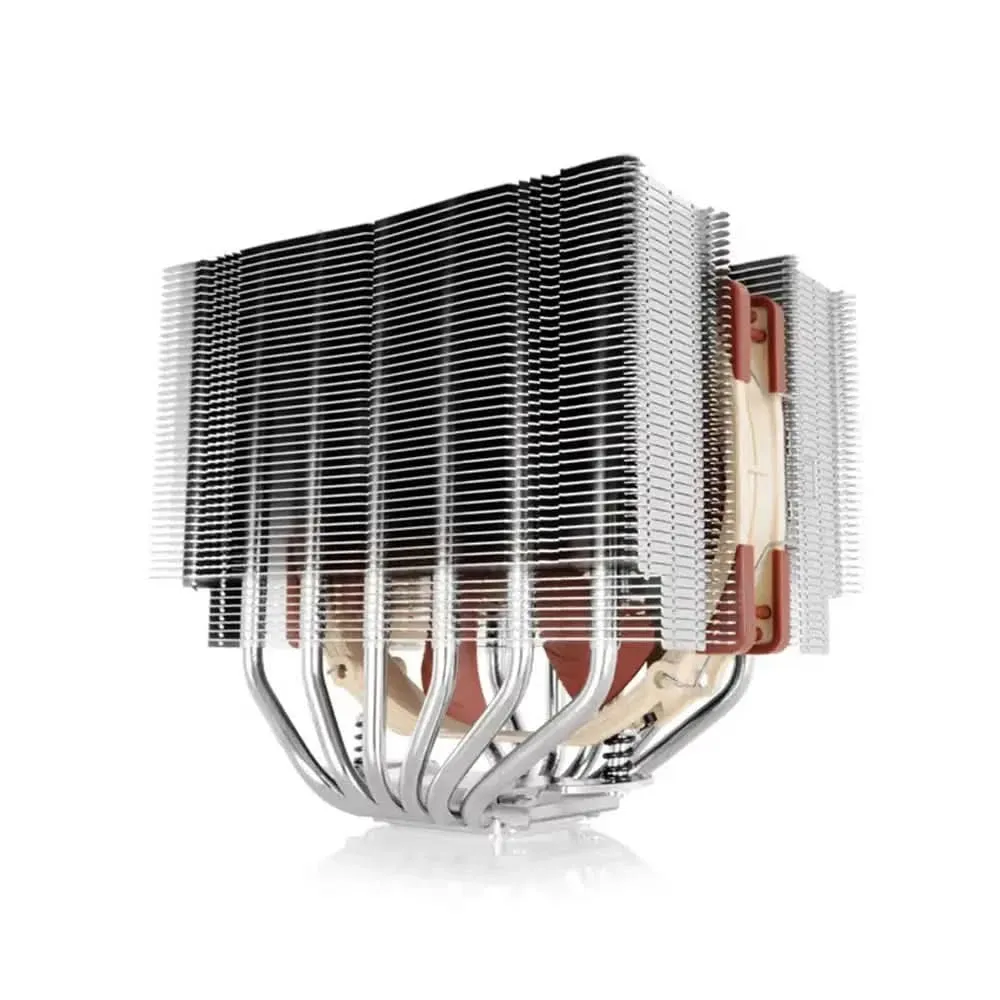

Tailored to provide superior RAM and PCIe compatibility, the NH-D15S is an asymmetrical single fan version of Noctua’s award-winning flagship model, the NH-D15. Thanks to its asymmetrical design, the NH-D15S clears the top PCIe slot on most µATX and ATX motherboards. At the same time, the single fan setup and recessed lower fins guarantee 100% RAM compatibility with memory modules of up to 65mm height. Users who have sufficient room can also upgrade the cooler with either a 120mm or round 140mm fan on the front fin stack for further improved performance in dual fan mode. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-D15S forms a complete premium quality solution that combines dual tower efficiency with excellent compatibility and flexible upgrade options.
| Key Specifications | |
| Socket Compatibility | AM5, AM4, LGA1700, LGA1851, LGA1954, LGA1156, LGA1155, LGA1150, LGA1151, LGA1200 |
| Total Height | 1600 mm |
| Fan Configuration | 1x 140x140x25mm (round) |
| NSPR | 167 |
| Color | Brown |
| Scope of Delivery | NF-A15 PWM premium fan NA-RC7 Low-Noise Adaptor (L.N.A.) Fan-clips for second fan NT-H1 high-grade thermal compound SecuFirm2™ mounting kit Noctua metal case-badge |
| Size (Form Factor) | 140 x 150 x 25 mm (round) |
| Speed Range | 0 – 1500 rpm |
| Airflow | 140.2 m³/h (82.52 CFM) |
| Acoustical Noise (max.) | 24.6 dB(A) |
| Static pressure (max.) | 2.08 mm H₂O |
| Rated voltage | 12V |
| Input power (typical) | 1.19 W |
| Connector | 4 Pin |
| Height with fan(s) | 160 mm |
| Height without fan(s) | 160 mm |
| Width with fan(s) | 150 mm |
| Width without fan(s) | 150 mm |
| Depth with fan(s) | 135 mm |
| Depth without fan(s) | 135 mm |
| Weight with fan(s) | 1150g |
| Weight without fan(s) | 964g |
| Material: heatsink base | Copper, nickel plated |
| Material: heatsink fins | Aluminium, nickel plated |
| Material: heatpipes | Copper, nickel plated |
| Interface heatpipes/heatsink fins | Soldered |
| Number of heatpipes | 6 |
| Heatpipe diameter | 6mm |
| Fin count | 45 |
| Rack unit compatibility | 5U |
| Base Size | 38 x 40 mm |
| Packaging dimensions | 237 x 189 x 166 mm |
| Packaging weight (including product) | 2000g |
| Packaging unit | 8 Pcs |
| Packaging unit dimensions | 400 x 358 x 516 mm |
| Packaging unit weight | 17.2 Kg |
