Description

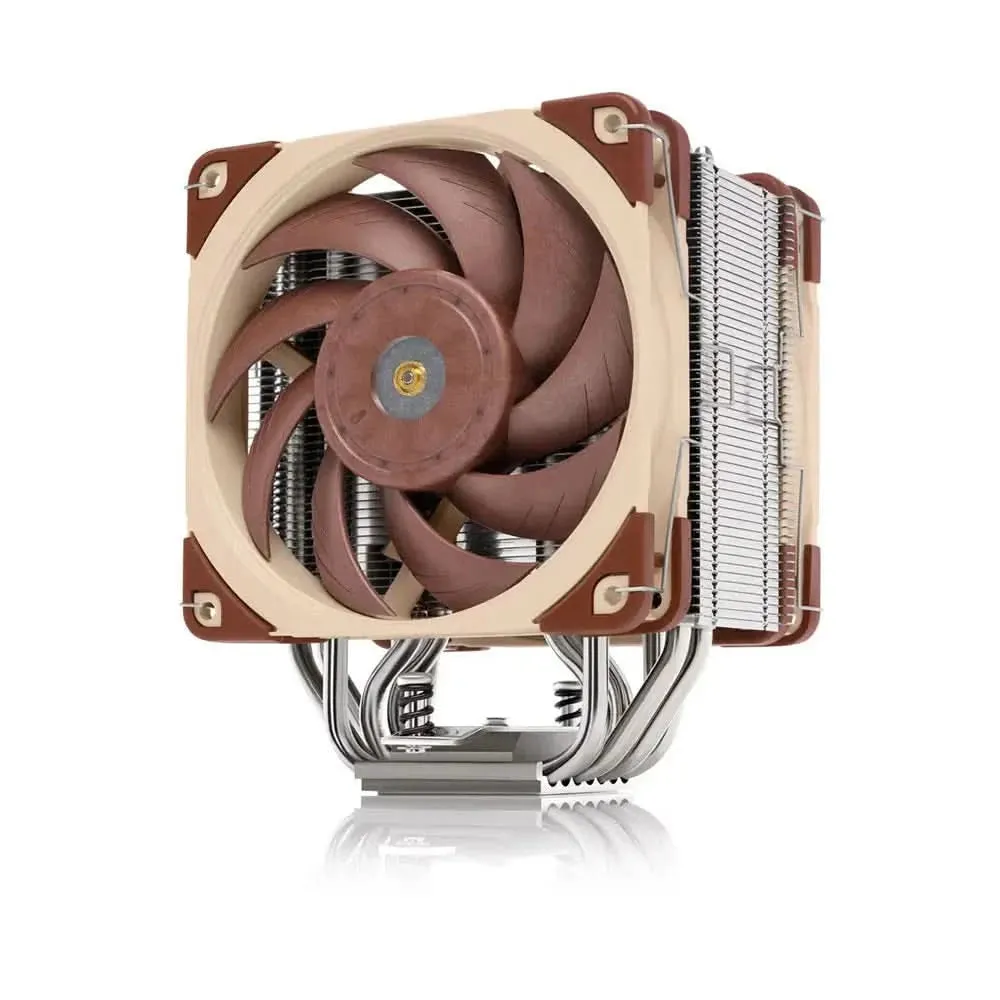

The NH-U12A is the latest, 5th generation of Noctua’s award-winning NH-U12 series of 120mm size premium-quality quiet CPU coolers. Conceived to push the envelope of the 120mm form factor, it combines two of Noctua’s flagship model NF-A12x25 PWM 120mm fans with a completely redesigned heatsink featuring 7 heatpipes and an increased fin surface area for superior heat dissipation. This way, the NH-U12A can rival the performance of many 140mm size coolers while offering 120mm class case and PCIe compatibility. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-U12A is a deluxe choice that combines top-tier performance with excellent compatibility and outstanding quietness of operation.
| Key Specifications | |
| Socket Compatibility | AM5, AM4, LGA1700, LGA1851, LGA1954, LGA1156, LGA1155, LGA1150, LGA1151, LGA1200 |
| Total Height | 158mm |
| Fan Configuration | 2x 120x120x25mm (square) |
| NSPR | 169 |
| Color | Brown |
| Scope of Delivery | 2x NF-A12x25 PWM premium fan 2x NA-RC14 Low-Noise Adaptor (L.N.A.) NA-YC1 4-pin PWM splitter cable SecuFirm2™ mounting kit NT-H1 high-grade thermal compound Noctua metal case-badge |
| Size (Form Factor) | 120 x 120 x 25 mm (square) |
| Speed Range | 0 – 2000 rpm |
| Airflow | 102.1 m³/h (60.09 CFM) |
| Acoustical Noise (max.) | 22.6 dB(A) |
| Static pressure (max.) | 2.34 mm H₂O |
| Rated voltage | 12V |
| Input power (typical) | 1.2V |
| Connector | 4 Pin |
| Height with fan(s) | 158mm |
| Height without fan(s) | 158mm |
| Width with fan(s) | 125mm |
| Width without fan(s) | 125mm |
| Depth with fan(s) | 112mm |
| Depth without fan(s) | 58mm |
| Weight with fan(s) | 1220g |
| Weight without fan(s) | 760g |
| Material: heatsink base | Copper, nickel plated |
| Material: heatsink fins | Aluminium, nickel plated |
| Material: heatpipes | Copper, nickel plated |
| Interface heatpipes/heatsink fins | Soldered |
| Number of heatpipes | 7 |
| Heatpipe diameter | 6mm |
| Fin count | 50 |
| Mounting hole pitch | 78mm |
| Rack unit compatibility | 5U |
| Base Size | 44.1 x 44.1 mm |
| Packaging dimensions | 216 x 175 x 168 mm |
| Packaging weight (including product) | 1800g |
| Packaging unit | 8 Pcs |
| Packaging unit dimensions | 465 x 375 x 376 mm |
| Packaging unit weight | 15.5 Kg |
