Description
Features:
| Line interactive UPS | |
| Auto restart while AC is recovering | |
| Double Boost | |
| Automatic Voltage Regulation (AVR) | |
| Wide Input Range | |
| Microcontroller Based | |
| Generator Compatible | |
| No load Auto Shutdown at battery mode |
Specifications:
|
Capacity |
|||
| (VA/W) | 600VA/360W | ||
|
Input |
|||
| Nominal voltage | 220-240 VAC | ||
| Voltage range | 140-300 VAC | ||
| Frequency | 50/60 Hz | ||
| Plug type | 3 Pin plug | ||
| Input Protection | Internal Fuse | ||
|
Output |
|||
| Voltage range (AC mode) | 230VAC ± 10 % | ||
| Voltage range (Batt. mode) | 230VAC ± 10 % | ||
| Frequency range (Batt. mode) | 50/60Hz ±1% | ||
| Transfer time | 4-8ms | ||
| Waveform | Simulated Sine Wave | ||
| No. of output sockets | 3 | ||

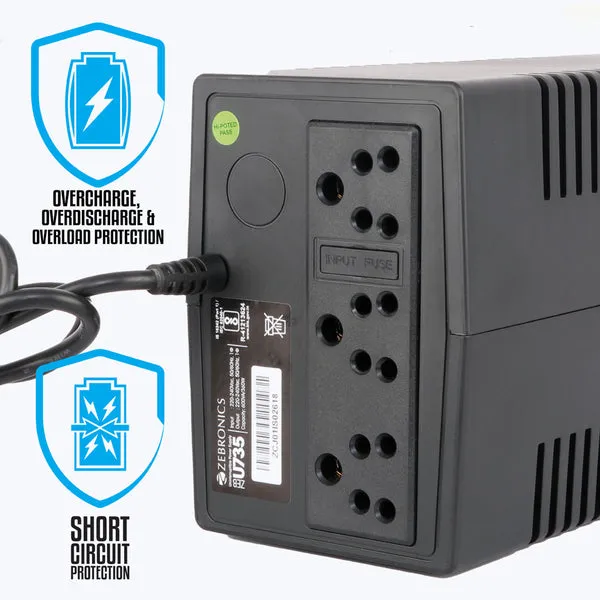

| Protections | Overload, Short Circuit, Over Discharge & Over Charge | ||
|
Battery |
|||
| Battery type | 12V 7Ah x 1 nos | ||
| Charging current | 1A | ||
| Recharge time | 6-8h to charge 90% (after complete discharge) | ||
|
Indicators |
|||
| No. of LEDs | 3 LED | ||
| AC mode | Green LED Glows | ||
| Battery mode | Orange LED blinks | ||
| Fault mode | Red LED Glow | ||
|
Alarm |
|||
| Battery mode | Beeping every 10 Seconds | ||
| Low battery | Beeping every 1 Second | ||
| Overload | Beeping every 0.5 second | ||
| Fault | Continuous beeping | ||
|
Physical details |
|||
| Product dimension (W x D x H) | 101 x 280 x 142 mm | ||
| Net. weight | 3.82 kg | ||
| Package dimension (WxDxH | 326 x 142 x 213 mm | ||
|
Environmental factors |
|||
| Operational temperature | 0-40⁰C | ||
| Noise level | < 45dB | ||
| Country of Origin | People’s Republic of China | ||
